Rolling Q345 High-Yield Steel: Why a Standard 30mm Machine Isn't Enough for 20mm Plates
Discover why a standard 30mm plate roller often fails when calibrating 20mm Q345 steel. Learn the engineering secrets behind SLM's reinforced W11-35x2500 series and how to achieve perfect roundness.
The Challenge of Roundness in High-Yield Steel Fabrication
In the pressure vessel and heavy engineering sectors, Q345B steel is the material of choice due to its superior strength. However, for fabricators using 3-roll mechanical symmetrical bending machines, achieving perfect roundness often becomes a costly bottleneck. The struggle isn't just about "bending" the metal; it's about the critical calibration (re-rolling) phase.
The Yield Strength Gap: Q345 vs. Mild Steel
A common mistake in machinery procurement is ignoring the yield strength variable. Engineering data shows that a 20mm Q345 plate has a yield strength equivalent to a 25mm standard carbon steel plate.
Furthermore, in mechanical symmetrical rollers (W11 series), the calibration force—the pressure required to eliminate flat ends and correct the radius—is typically only 70% of the machine's maximum rolling capacity.
The Math:If you use a standard 30mm capacity machine to calibrate a 20mm Q345 plate, you are pushing the machine to its absolute physical limit. This results in:
- Excessive roller deflection (bowing).
- Inaccurate circularity at the seam.
- Accelerated wear on lead screws and nuts.
The SLM Solution: Re-Engineering the W11-35x2500
At SLM Forming, we have addressed this industry-wide issue by over-specifying our heavy-duty W11-35x2500 series. We didn't just build a bigger machine; we optimized the geometry for high-yield materials:
1. Increased Roller Diameter & Section Modulus
We have significantly enlarged the diameters of both the top and bottom rollers. This increases the Section Modulus, ensuring the rollers remain perfectly straight even under the extreme pressures required for Q345 calibration.
2. Optimized Center Distance
By increasing the center-to-center distance of the lower rollers, we provide greater mechanical leverage. This allows the machine to handle "small diameter" calibration on thick, high-strength plates without straining the drive system.
3. Reinforced Spindles and Bed Frame
To support this increased power, we have upgraded the lead screws (spindles), heavy-duty bronze nuts, and the main bed frame. Every structural component is built with a higher safety factor to ensure zero deformation during peak loads.

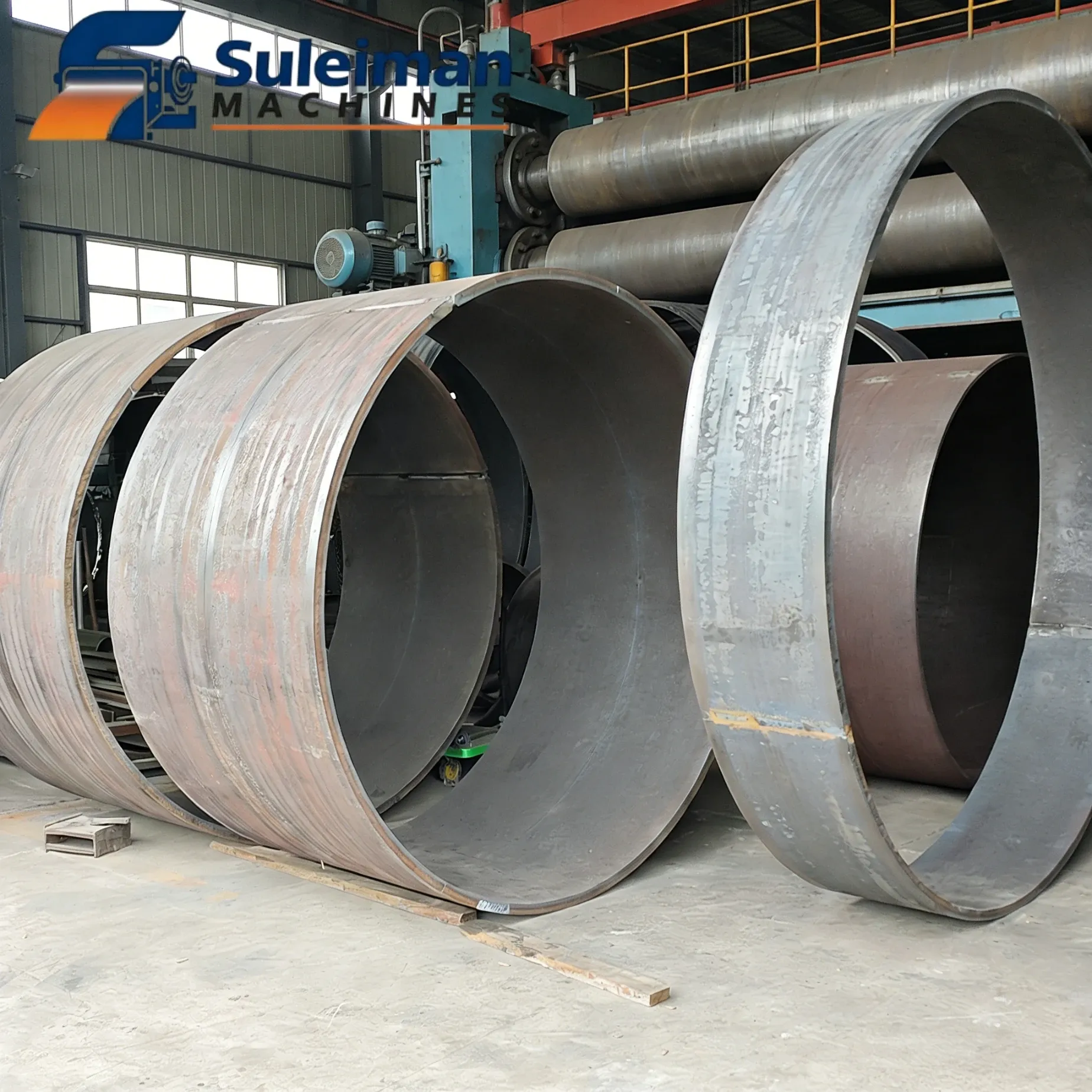

Proven Results in Pressure Vessel Production
Our upgraded W11-35x2500 units are currently delivering "zero-struggle" performance in Tier-1 fabrication shops. Clients report that 20mm Q345 plates are now calibrated to tight tolerances in a single pass, significantly reducing manual fit-up time and welding prep.
Expert Technical Consultation
Are you planning a project involving high-yield steel? Don't settle for a standard machine that might fail your calibration requirements. Contact our engineering team for a free rolling feasibility analysis.
