Industrial Hydraulic Press Machine (SLM-HP Series)
Product Overview
The SLM Hydraulic Press Machine series is engineered for high-performance metal forming, deep drawing, and precision stamping. Built with a focus on structural rigidity and hydraulic stability, our industrial hydraulic presses provide the consistent force required for complex manufacturing tasks. Whether you need a versatile four-column design or a heavy-duty H-frame structure, the SLM-HP series delivers the reliability and precision needed to optimize your production line.
Press Configurations

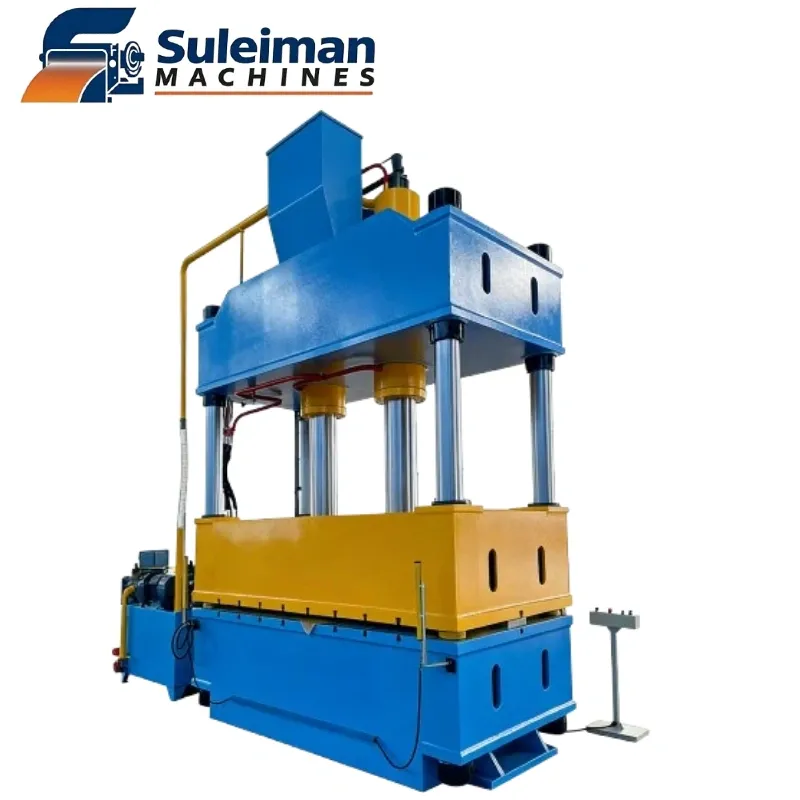

Four-Column Type
Offers excellent accessibility from all four sides. Ideal for general metal forming, molding, and assembly tasks where versatility is key.

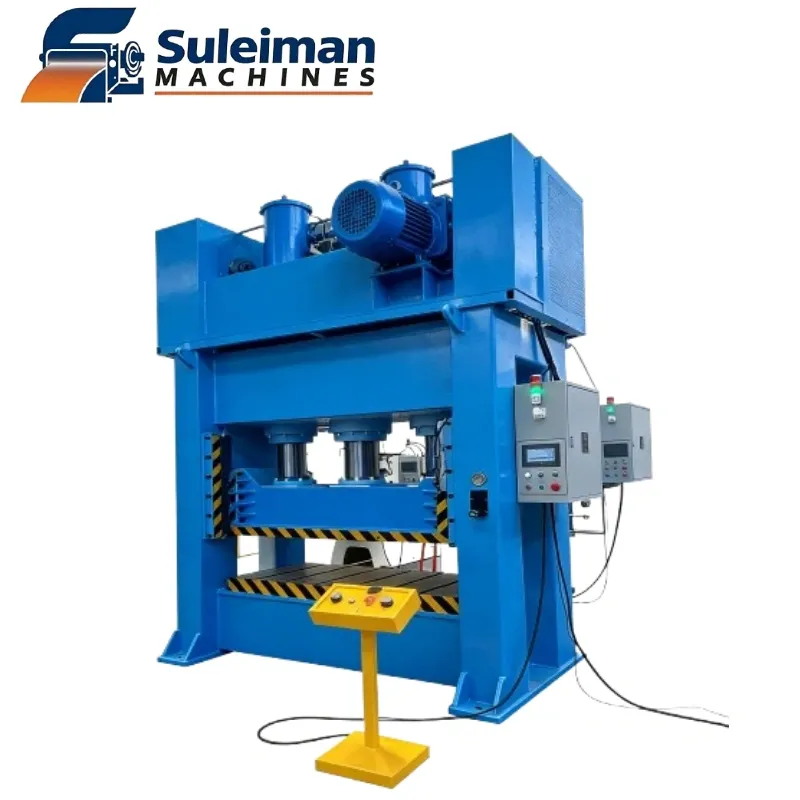

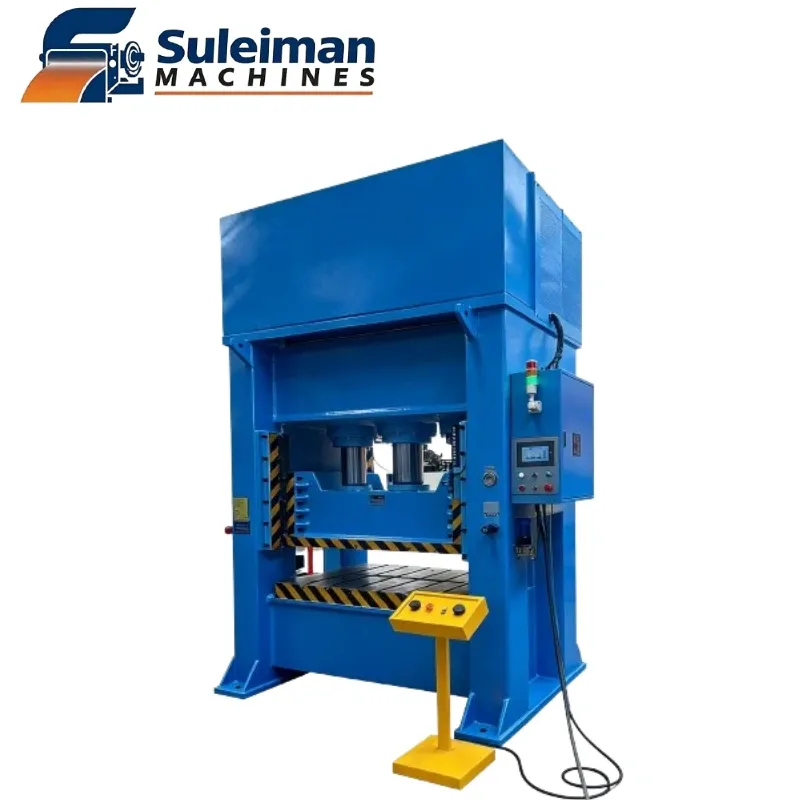

H-Frame / Gantry Type
Provides maximum structural rigidity and resistance to off-center loads. Best suited for heavy-duty deep drawing and high-pressure industrial applications.
Key Performance Features
- High-Rigidity Frame: The machine body is constructed from high-quality welded steel plates, stress-relieved to ensure minimal deflection under full tonnage.
- Advanced PLC Control: Features an intuitive touch-screen interface for precise control over pressure, stroke, and dwell time, ensuring high repeatability.
- Precision Hydraulic System: Equipped with world-class valves and high-pressure pumps to provide smooth, quiet, and leak-free operation during continuous cycles.
- Adjustable Stroke & Pressure: Operators can easily customize the working parameters to suit different dies and material requirements.
- Safety First: Integrated with light curtains, emergency stop buttons, and hydraulic overload protection to meet international safety standards.
Technical Specifications (SLM-HP Series)
| Model | Nominal Force (kN) | Max Pressure (Mpa) | Stroke (mm) | Table Size (mm) | Motor Power (kW) |
|---|---|---|---|---|---|
| SLM-HP 100T | 1000 | 25 | 500 | 800 x 600 | 7.5 |
| SLM-HP 315T | 3150 | 25 | 700 | 1200 x 1000 | 15 |
| SLM-HP 500T | 5000 | 25 | 800 | 1400 x 1200 | 22 |
| SLM-HP 1000T | 10000 | 25 | 1000 | 1800 x 1500 | 45 |
Frequently Asked Questions (FAQ)
Q1: Can this hydraulic press be used for deep drawing?
A: Yes. Our SLM-HP series can be equipped with a hydraulic cushion (blank holder) specifically designed for deep drawing applications, ensuring uniform material flow and preventing wrinkles.
Q2: What is the advantage of a four-column design over an H-frame?
A: Four-column presses offer better access for loading and unloading parts from multiple sides. H-frame presses are generally more rigid and better for high-tonnage applications where precision under heavy load is critical.
Q3: Do you provide customized table sizes and strokes?
A: Absolutely. We specialize in tailoring the hydraulic press machine to your specific production needs, including custom tonnage, table dimensions, and specialized control features.
Why Choose SLM Forming?
At SLM Forming, we bridge the gap between factory power and global engineering standards. Every hydraulic press machine undergoes a rigorous 48-hour stress test and precision calibration before shipment. We provide full technical transparency and professional English-language support to ensure your operational success.
