Welding Manipulators (Column & Boom)
Advanced column and boom welding manipulators for automated tank seam welding. Enhance productivity and consistency with precision-controlled welding head positioning.
Automatic Column and Boom Welding Manipulator
Product Overview
The SLM Welding Manipulator (also known as a Column and Boom system) is the core of any modern automated welding center. Engineered for precision and stability, our manipulators allow for the perfect positioning of the welding head for longitudinal and circumferential seams on tanks, pipes, and pressure vessels. By integrating with our welding rotators, the SLM manipulator transforms manual welding into a high-efficiency, high-quality automated process, significantly reducing labor costs and welding defects.
Manipulator Configurations
Fixed Type (LHL)
The column is bolted to the floor. Ideal for dedicated welding stations where the workpiece is brought to the machine.
Mobile Trolley Type (LHT)
Mounted on a motorized rail car, allowing the entire column and boom to move along the workshop floor for extra-long projects.
Key Performance Features

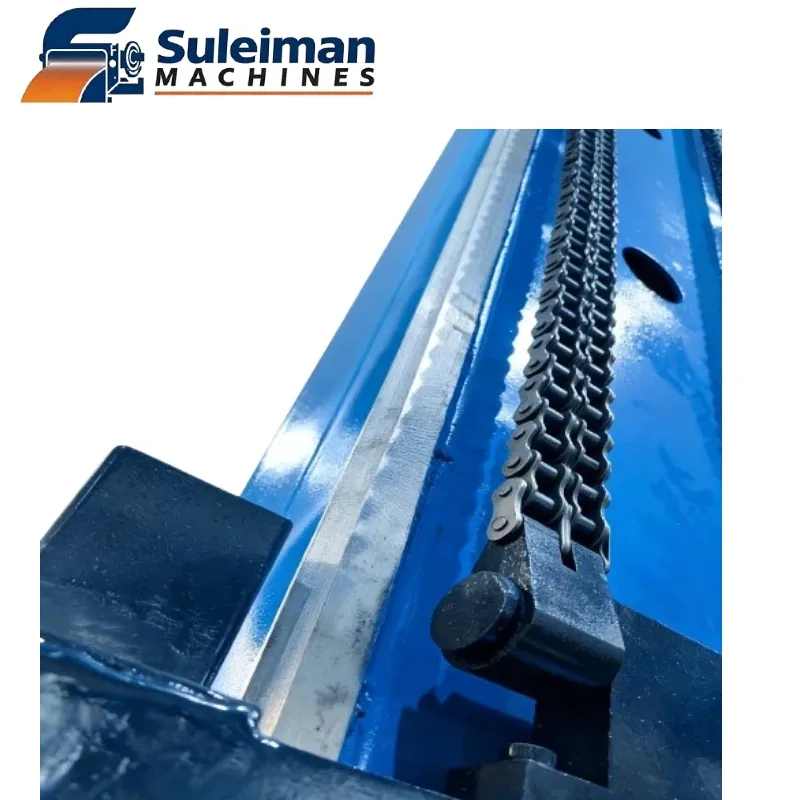

- Vibration-Free Movement: Precision-machined guide rails and high-strength lifting chains ensure smooth, steady boom travel, essential for consistent weld bead quality.

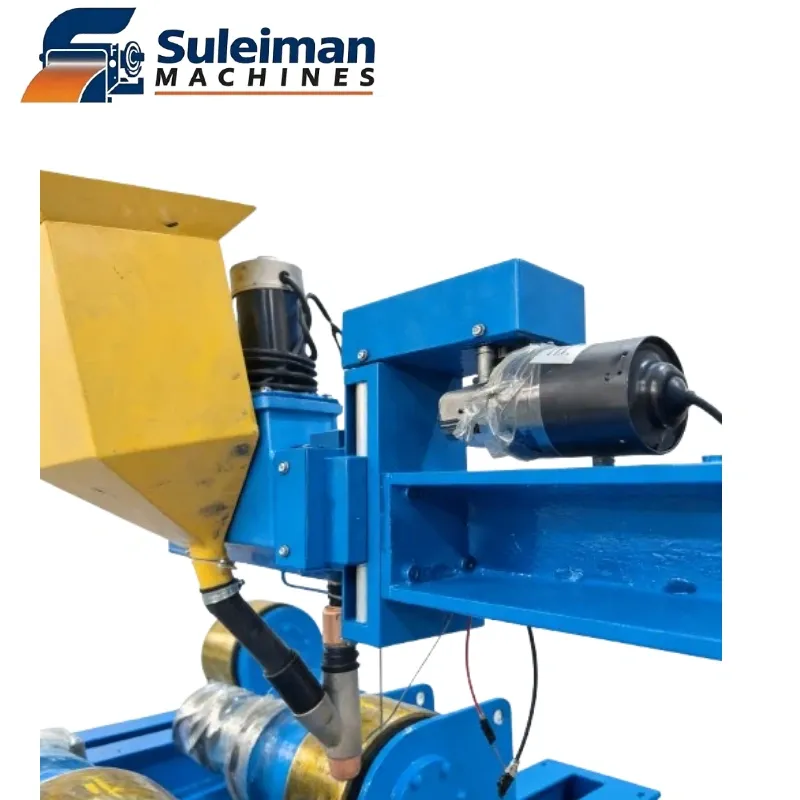

- Versatile Welding Compatibility: Seamlessly integrates with Submerged Arc Welding (SAW), MIG/MAG, and TIG welding power sources.
- Smart Control Interface: Features a centralized control pendant that manages boom elevation, extension, and the rotation of the welding rotators simultaneously.
- Safety Anti-Fall Mechanism: Equipped with a mechanical safety lock to prevent the boom from accidental dropping in the event of a chain failure.
- 360-Degree Column Rotation: Manual or motorized column rotation allows the manipulator to serve multiple welding stations, maximizing equipment utilization.
Technical Specifications
| Model | Vertical Stroke (mm) | Horizontal Stroke (mm) | Boom Speed (mm/min) | Column Rotation | Trolley Speed (m/min) |
|---|---|---|---|---|---|
| LH-3030 | 3000 | 3000 | 100 - 1000 | ±180° | Option |
| LH-4040 | 4000 | 4000 | 100 - 1000 | ±180° | Option |
| LH-5050 | 5000 | 5000 | 100 - 1000 | ±180° | Option |
| LH-6060 | 6000 | 6000 | 100 - 1000 | ±180° | Option |
Frequently Asked Questions (FAQ)
Q1: Can this manipulator handle both internal and external seams?
A: Yes. By adjusting the boom extension and using specialized welding heads, our welding manipulators are designed to perform high-quality internal and external longitudinal and circumferential welds.
Q2: Do you provide the welding power source as well?
A: We can supply the manipulator as a standalone unit or as a complete "Welding Center" package including the power source (Lincoln, Miller, or top Chinese brands), flux recovery systems, and rotators.
Q3: What is the lead time for a customized Column and Boom system?
A: Standard models (3x3m or 4x4m) are often available in 30-45 days. Highly customized heavy-duty systems may take 60 days to ensure rigorous testing before shipment.
Why Choose SLM Forming?
At SLM Forming, we specialize in integrating column and boom technology with your existing production line. Every unit is factory-tested for load capacity and precision alignment. We offer professional English-language technical support to ensure your automated welding success.
